8ch RELAY Card

DMX Relay

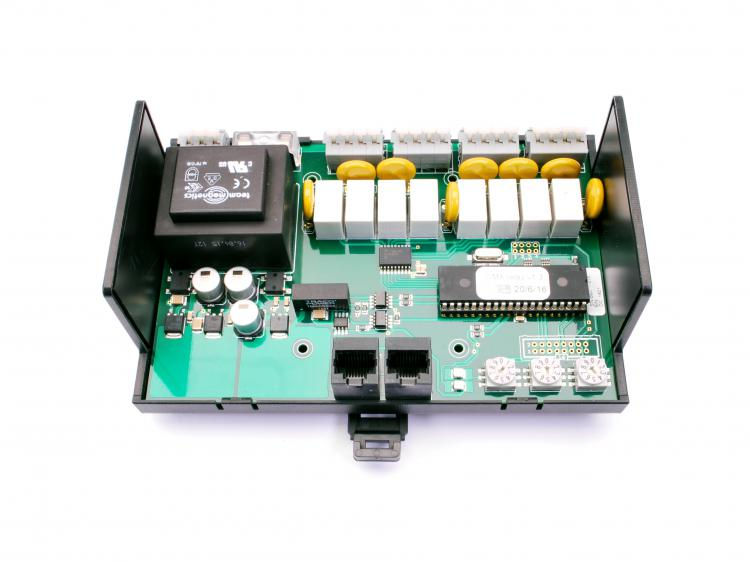

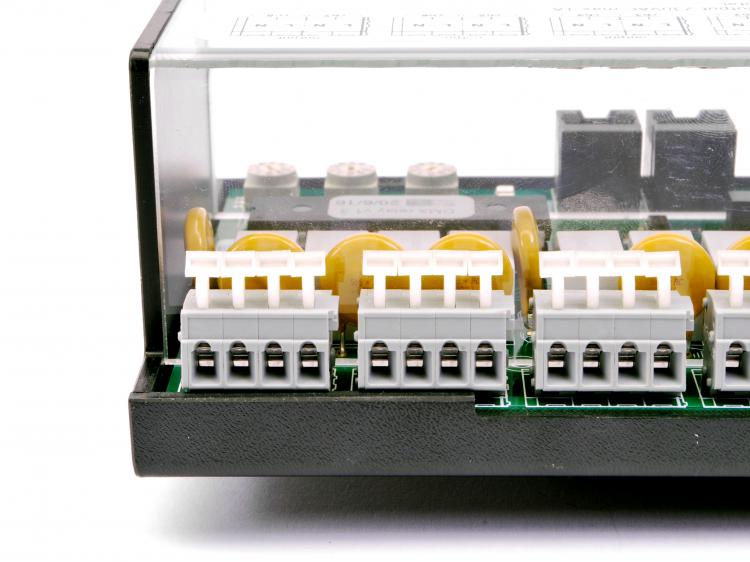

This card can switch up to 8 independent lines. Each line can have a 1A load. With a maximum of 4A total load on each card. The relays are controlled by a DMX signal. The DMX receiver is opto isolated from all other electronics. The output clamps are directly connected to the 230Vac main voltage, so it is not possible to use the outputs as potential free contact.

The lux lumen 8 channel relay card is specially developed by our R&D department for bigger installations where bigger quantity’s of power relay are used. It features 8 independent outputs which can drive up to 5 power relays each. It’s a compact reliable design but cost effective. This card the best solution in your project.

Related Products


4ch RELAY Card 1-10V


Productname

8ch RELAY Card

Housing

Plastic housing

Bracket

DIN-rail

Length

60mm

Height

167mm

Depth

110mm
